RENTAL JLG E450AJ ELECTRIC ARTICULATING BOOM LIFT

JLG E450AJ Electric Articulating Boom Lift available for rent—ideal for quiet, zero-emission indoor and outdoor work. Delivers 13.72 m platform height with up to 7.24 m horizontal outreach and a 227 kg platform capacity. Powered by a 48V DC system (8 x 6V batteries) with smooth, precise hydraulic controls.

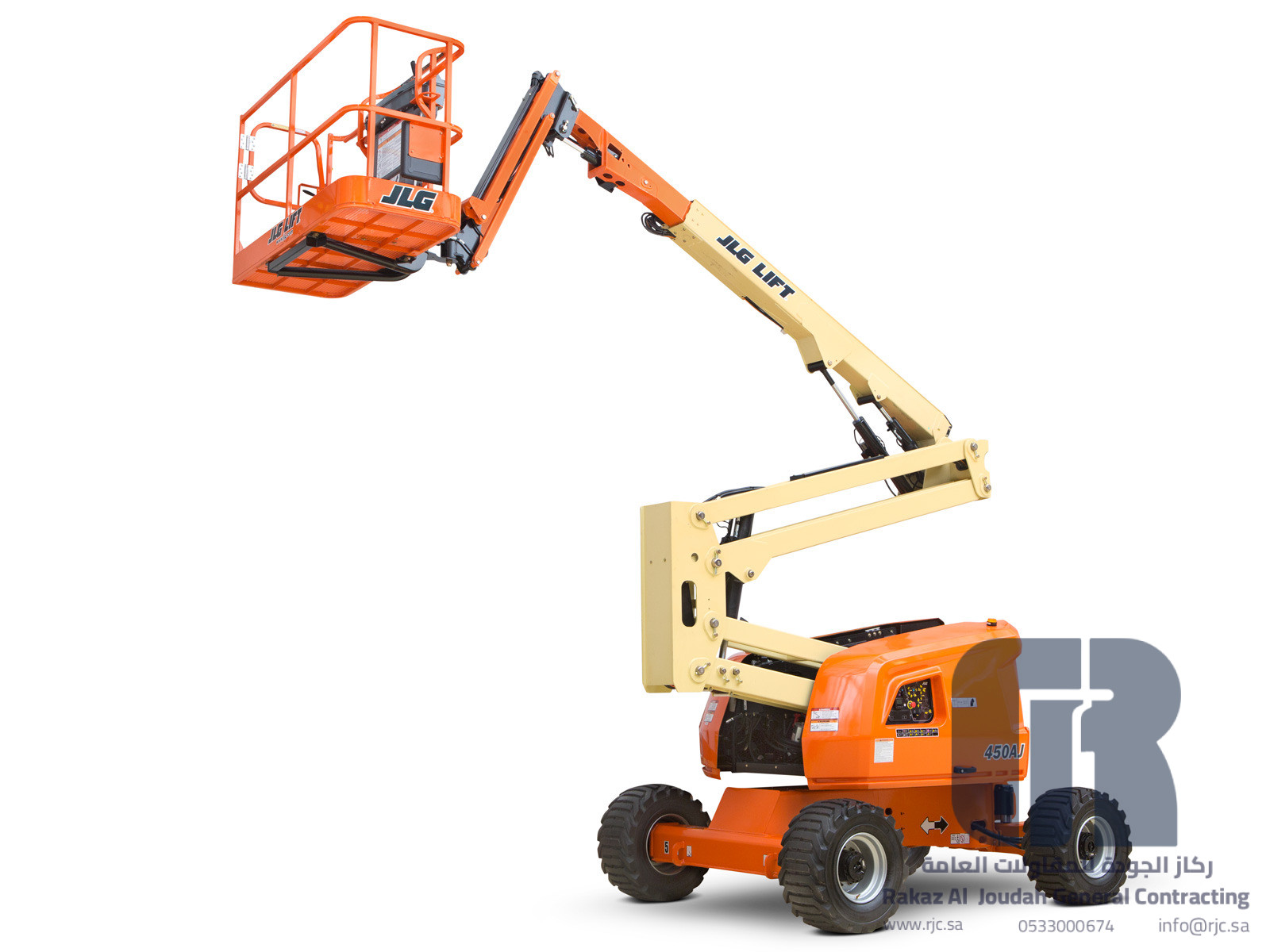

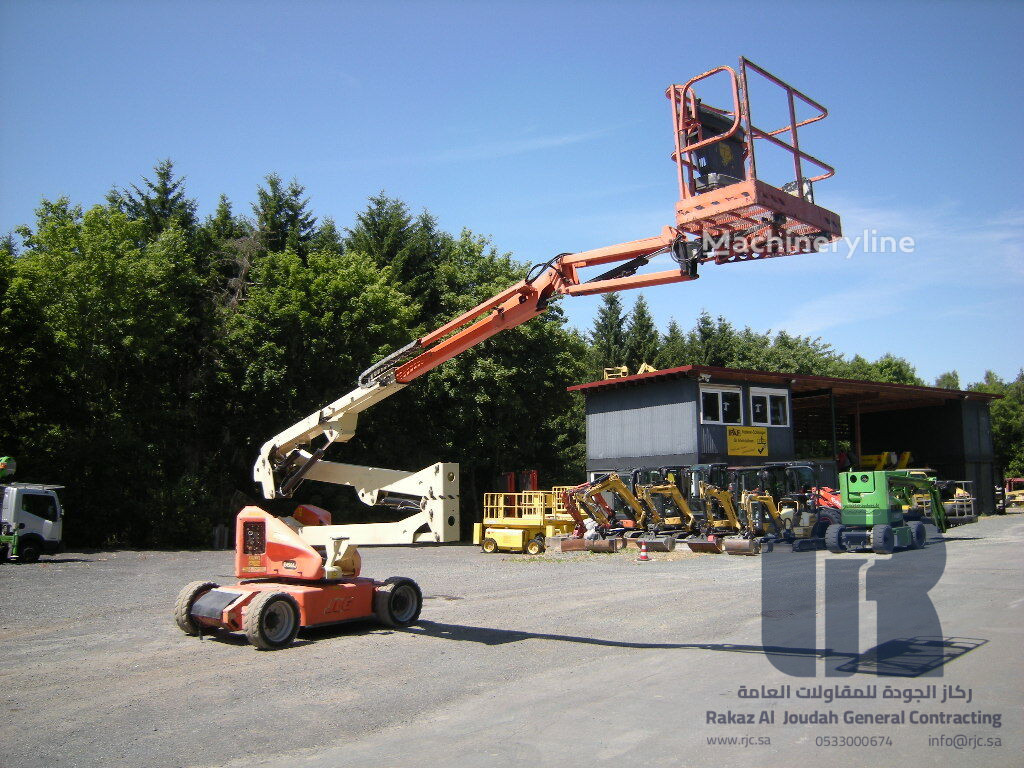

Rental JLG E450AJ Electric Articulating Boom Lift

Description

JLG E450AJ Electric Articulating Boom Lift is a versatile access solution designed for safe, efficient work at height. Its articulating boom configuration helps operators reach up-and-over obstacles and position the platform accurately in tight or congested areas.

The electric drive system supports quieter operation with no on-site exhaust emissions, making it well-suited for indoor facilities, warehouses, malls, airports, and other sensitive environments, while still performing reliably on outdoor sites when ground conditions allow.

With intuitive controls and smooth boom motion, the E450AJ helps improve productivity for maintenance, installation, fit-out, and general construction tasks. Built-in safety features and stable handling contribute to confident operation when following site procedures and manufacturer guidelines.

Ideal for projects that require clean operation, precise positioning, and dependable access performance.

Technical Specifications

Model

E450AJ

Manufacturer name

JLG Industries Inc.

Country of origin

China

Equipment type

Electric Boom Lift

Platform height

13.72 m

Horizontal outreach

7.24 m

Up and over clearance

7.7 m

Platform capacity

227 kg

Swing

360° (non-continuous)

Platform rotator

180° (hydraulic)

Jib range of articulation (vertical)

141° (+86° / -55°)

Weight

6532 kg

Ground bearing pressure

7.6 kg/cm²

Max drive speed

7.2 km/h

Gradeability

30%

Turning radius (inside) (2WS/4WS)

0.61 m

Turning radius (outside) (2WS/4WS)

3.15 m

Electrical system

48 V DC

Batteries (standard)

8 × 6 V / 375 amp-hr

Drive motors

Dual electric traction

Tires (standard)

240/55 on 444.5 mm rim (foam-filled / non-marking)

Tires (optional)

Approx. 660 × 178 × 508 mm (converted); plus 240/55 on 444.5 mm rim (foam-filled)

Hydraulic system capacity

15.14 L

Motor / pump

Permanent magnet motor / gear pump

Platform width

76 cm

Platform length

1.52 m

Machine width

1.75 m

Tailswing

0 cm

Machine height

2.01 m

Machine length

6.45 m

Wheelbase

2.01 m

Ground clearance

20 cm

Key features

Automatic Traction Control for uneven surfaces; Longer duty cycles for productivity; Zero emissions; Enhanced up-and-over access with jib

Accessories & options

12.7 mm airline to platform; Ambient white noise alarm; Batteries: 305 amp-hr AGM; Bolt-on fall arrest system: 76×122 cm / 76×152 cm (see option notes); Inverter: 2000 W (see option notes); Light packages; Platform mesh to mid or top rail (see option note

Standard features

110 V AC receptacle in platform; 12 V DC auxiliary power; 180° hydraulic platform rotator; 3° tilt cut-out; 76×152 cm platform; All motion alarm; Automatic traction control (ATC); Battery condition indicator; Brushless AC motors; Center storage tray; Clea

Option notes

1) Requires self-closing gate. 2) Not available with UL EE rating. 3) Not compatible with bolt-on fall arrest / platform mesh / platform rail extensions / SkySense or soft touch (excludes option noted). 4) Requires additional counterweight. 5) Compatible

Warranty

1 year full coverage; 5 years major structural components (as stated)

Standards compliance

Meets or exceeds applicable ANSI and CSA requirements (as stated)

Datasheet part number

3131132 (R1025_06)

Notes

All dimensions are approximate; Certain options or country standards increase weight; Additional accessories/options available via JLG Aftermarket.

Ratings

0.00 ( 0 )

Comments 0

No comments yet.

Pricing Information

Rental Rate

SAR 8,300.00 per month
Availability: In Stock (4)
Delivery time: 3–9 days
