ZOOMLION ZT20J TELESCOPIC BOOM LIFT FOR RENT

ZOOMLION ZT20J telescopic boom lift for rent with 22.75 m working height, 17.4 m horizontal outreach, 4WD drive, and up to 454 kg platform capacity for demanding outdoor access applications.

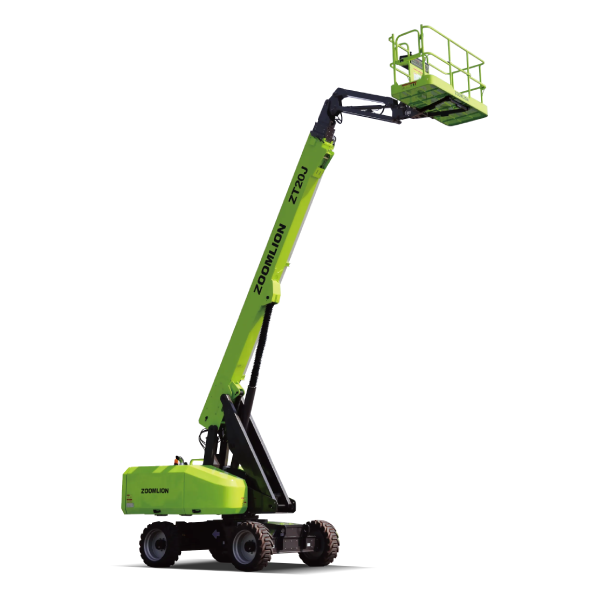

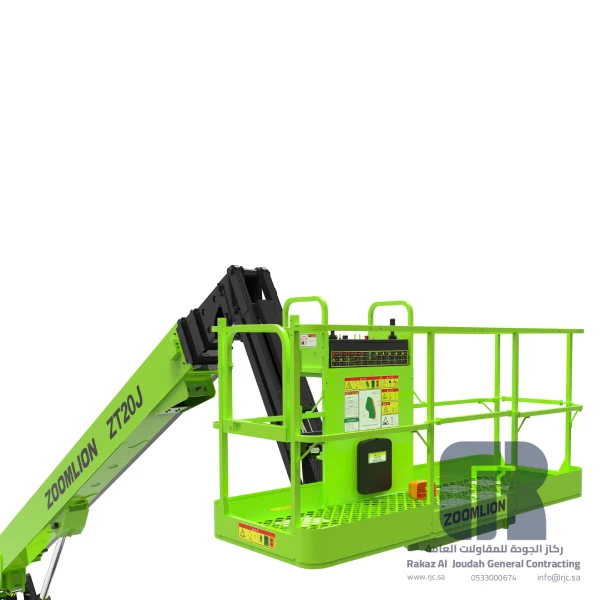

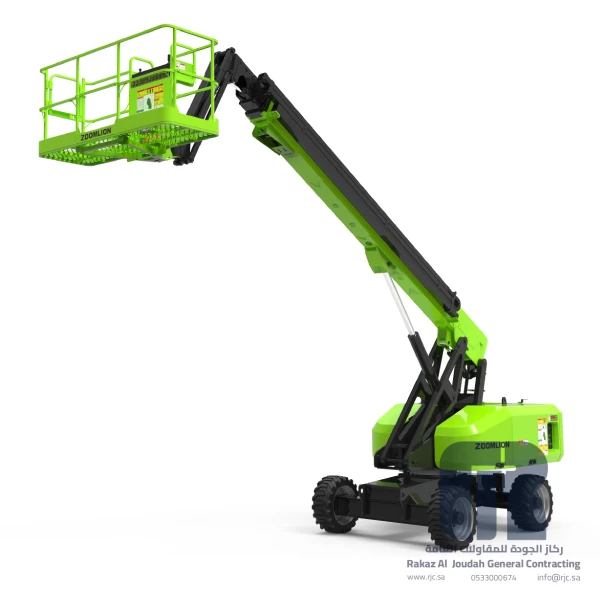

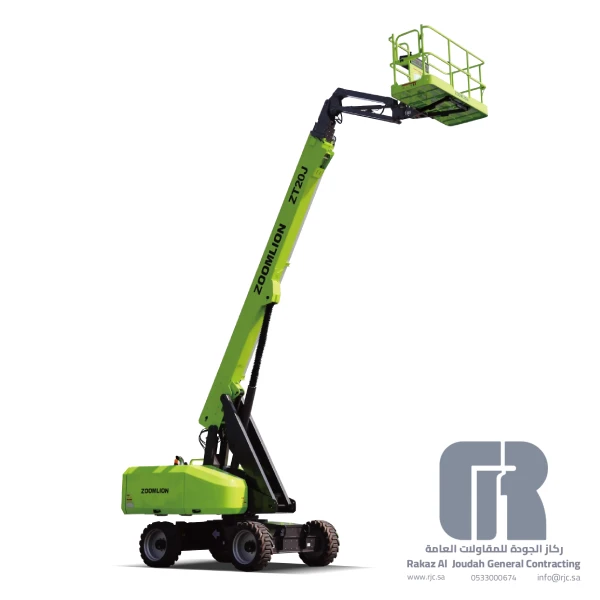

ZOOMLION ZT20J Telescopic Boom Lift for Rent

Description

ZOOMLION ZT20J Telescopic Boom Lift for Rent

The ZOOMLION ZT20J is a high-reach telescopic boom lift designed for safe and efficient access to elevated work areas. Built by ZOOMLION, a globally recognized manufacturer of construction and lifting equipment, this model is engineered to deliver strong outdoor performance, reliable stability, and extended horizontal reach for demanding jobsite conditions.

This machine is well suited for applications that require working at height in large open areas, especially where operators need both vertical access and long horizontal outreach. It is commonly used for steel structure work, building construction, industrial maintenance, warehouse exterior work, facility installation, MEP projects, and site maintenance operations.

The ZT20J offers a strong combination of working height, platform capacity, and 4WD traction, making it a practical solution for outdoor environments and rough working areas. Its telescopic boom design helps operators reach distant work points more directly, reducing repositioning time and improving productivity on site.

For rental customers, the ZOOMLION ZT20J is a dependable choice when the job requires a robust boom lift for elevated access, maintenance, installation, and construction support tasks with efficient reach and stable performance. Based on the attached brochure, the model provides up to 22.75 m working height, 17.4 m horizontal outreach, and up to 454 kg platform capacity. :contentReference[oaicite:0]{index=0}

Technical specifications

Model

ZT20J

Compliance Standard

CE / ANSI / CSA

Work Height

74 ft 7 in / 22.75 m

Platform Height

68 ft 1 in / 20.75 m

Horizontal Outreach

57 ft 1 in / 17.4 m

A - Stowed Length

34 ft / 10.36 m

B - Stowed Width

8 ft 2 in / 2.49 m

C - Stowed Height

9 ft 1 in / 2.78 m

D - Platform Length

8 ft / 2.44 m

E - Platform Width

3 ft / 0.91 m

Jib Length

5 ft / 1.53 m

F - Wheelbase

8 ft 3 in / 2.52 m

Tread

8 ft 2 in / 2.49 m

G - Ground Clearance

1 ft 5 in / 0.42 m

Platform Capacity (Unrestricted/Restricted)

660 lb / 300 kg ; 1000 lb / 454 kg

Drive Speed (Stowed)

3.73 mph / 6.0 km/h

Gradeability

45% (24°)

Turning Radius (Inside)

7 ft 10 in / 2.4 m

Turning Radius (Outside)

17 ft 9 in / 5.4 m

Turntable Swing

360° continuous

Platform Rotation

±90°

Tail Swing

4 ft 9 in / 1.45 m

Jib (Range of Articulation)

135° (-60° to 75°)

Max. Wind Speed

28 mph / 12.5 m/s

Engine

Kubota V2403 36.8 kW/2700 rpm | Weichai WP3.2G50E317A 36.8 kW/2500 rpm

Fuel Tank Capacity

39.6 US gal / 150 L

Control Voltage

12V DC

Hydraulic Tank Capacity

39.6 US gal / 150 L

Drive Mode

4WD

Steering Mode

Front-wheel

Tire Type

355/55D-325-NM Non-marking Foam-filled Tires | 355/55 D625 Foam-filled Tires | 36x14-20 Solid Tires

Gross Weight

26896 lb / 12200 kg
