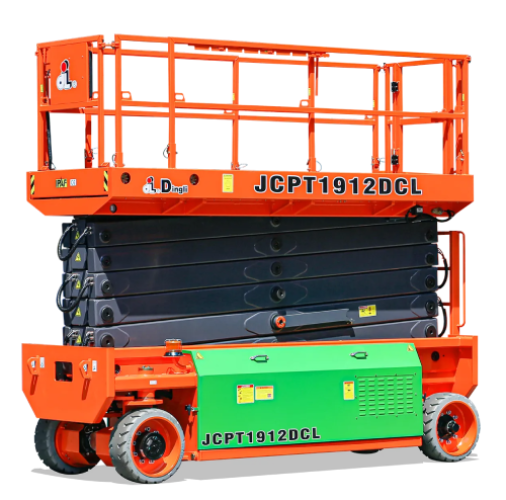

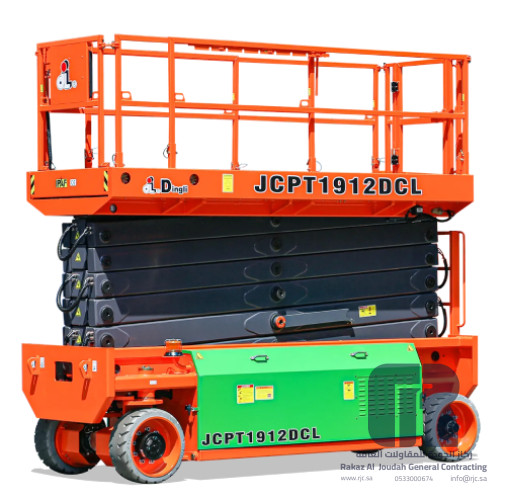

DINGLI JCPT 1912DCL ELECTRIC SELF-PROPELLED SCISSOR LIFT

Dingli JCPT1912DCL electric self-propelled scissor lift with a maximum working height of 19.00 m, platform height of 17.00 m, and a safe working load of 500 kg. It offers a 3.44 m x 1.17 m platform with a 1.20 m extension deck and is suitable for both indoor and outdoor use.

Dingli JCPT 1912DCL Electric Self-Propelled Scissor Lift

Description

Manufactured by ZHEJIANG DINGLI MACHINERY CO., LTD., the Dingli JCPT1912DCL is a self-propelled scissor lift designed for reliable access in demanding work environments. This electric model combines robust construction with practical features for efficient operation.

The JCPT1912DCL is ideal for a wide range of applications, including indoor and outdoor maintenance, construction, installation, and facility management tasks. Its self-propelled design allows for easy maneuverability on job sites, while the one-way platform extension deck provides additional reach when needed.

Key operational features include proportional joystick controls for precise movement, self-locking gates for safety, and a platform load sense system. The lift is equipped with solid rubber tyres, two-wheel drive, and two-wheel steering, ensuring stable performance on various surfaces. Safety is enhanced with a tilt alarm, motion alarm, emergency stop button, and an onboard fault diagnostic system. The foldable guard rails facilitate transport and storage, and the flashing LED beacon increases visibility on site.

Technical specifications

Manufacturer

ZHEJIANG DINGLI MACHINERY CO., LTD.

Country of Origin

China

Max. Working Height (Inside)

19.00m

Max. Working Height (Outside)

19.00m

Max. Platform Height (Inside)

17.00m

Max. Platform Height (Outside)

17.00m

Overall Length

3.76m

Overall Width

1.25m

Overall Height (Rails Up)

3.24m

Overall Height (Rails Down)

2.47m

Platform Size (Length×Width)

3.44m×1.17m

Platform Extension Size

1.20m

Ground Clearance (Stowed/Raised)

0.15m/0.025m

Wheelbase

2.89m

Turning Radius (Inside/Outside)

1.00m/3.50m

Tyres

22×9×16

S.W.L

500kg

S.W.L On Extension

500kg

Max. Occupants (Inside/Outside)

2/0

Gradeability

30%

Travel Speed (Stowed)

4.5km/h

Travel Speed (Raised)

0.4km/h

Max. Working Slope

X-1.5°/Y-3°

Up/Down Speed

70/76sec

Overall Weight

7140kg

Hydraulic Tank

50L

Battery

48V/360Ah

Charger

48V/60A

Driving Motor

2×32VAC/3.3kW

Lifting Motor

48VDC/12.0kW

Standard Items

Proportional Joystick Controls; Self-Locking Gates; One-Way Platform Extension Deck; Drivable At Full Height; Solid Rubber Tyres; Two-Wheel Drive; Two-Wheel Steering; Automatic Brake System; Self-Weight Lowering System; Tubing Explosion-Proof System; Onbo

Ratings

0.00 ( 0 )

Comments 0

No comments yet.

Pricing information

Daily Rental Rate

SAR 1,107.69 per day

Weekly Rental Rate

SAR 6,300.00 per week

Monthly Rental Rate

SAR 18,000.00 per month
Availability: In stock (1)
Delivery time: 3–9 days
