Product Overview

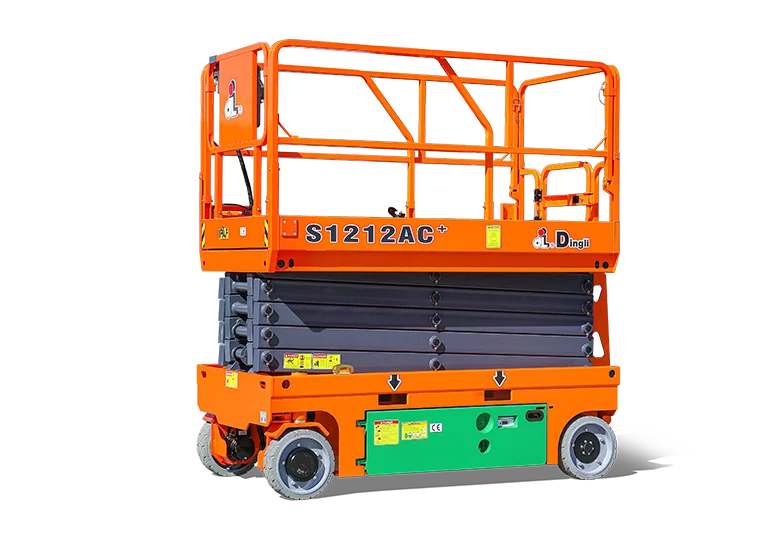

The Dingli S1212AC+ is a state-of-the-art electric scissor lift designed for superior performance in both indoor and outdoor applications. With a maximum working height of 12 meters and a maximum platform height of 10 meters, it provides excellent reach for various tasks such as maintenance, installation, and construction. The platform supports a Safe Working Load (S.W.L) of 408 kg on the main platform and 113 kg on the extension, accommodating up to 2 occupants indoors and 1 occupant outdoors.
Dimensions & Measurements
The S1212AC+ features optimized dimensions for efficient maneuverability: an overall length of 2.48 m, width of 1.15 m, and a height of 2.49 m with the rails up (or 1.96 m with rails down). The platform measures 2.27 m × 1.12 m with a 0.90 m extension, ensuring a spacious working area. It offers a ground clearance of 0.10 m when stowed and 0.019 m when raised, with a wheelbase of 1.87 m and a tight turning radius of 0 m inside / 2.10 m outside for excellent navigation in confined spaces.
Performance Specifications
This model offers outstanding performance with a 25% gradeability, travel speeds of 6.0 km/h when stowed and 0.8 km/h when raised, and lift/lower speeds of 54/51 seconds. The machine can operate safely on slopes up to X-1.5° / Y-3°. Weighing 3060 kg, it is powered by a high-performance 28.8V / 175Ah lithium-ion battery with a 5-year warranty, a 28V / 30A charger, dual 15VAC / 0.87kW driving motors, and a 15VAC / 3.42kW lifting motor, supported by a 20L hydraulic tank.
Innovative Features
The S1212AC+ incorporates several advanced technologies, including a fully sealed AC system for both driving and lifting, ensuring zero maintenance and enhanced durability. Electric steering provides smoother operation, while a 40% reduction in connections and a 66% reduction in energy consumption significantly improve efficiency and sustainability.
Standard features include: proportional joystick controls, self-locking gate, drive-at-full-height capability, non-marking tires, two-wheel drive and steering, automatic brake system, emergency descent, cylinder holding valve, onboard diagnostics, tilt and motion alarms, horn, hour meter, safety arm, forklift pockets, one-way platform extension, charging protection, flashing beacon, foldable guard rails, automatic pothole protection, drive enable system, charging indicator, manual brake release, lanyard points, tie-down points, platform load sensing, emergency stop, hydraulic oil receiver, pure electric steering, and a kinetic energy recovery system.
Origin & Quality Assurance
The Dingli S1212AC+ is manufactured by Zhejiang Dingli Machinery Co., Ltd. in China. Known for its environmental efficiency, reliability, and emphasis on operator safety, this model is an excellent choice for demanding industrial and commercial environments.
