HANGCHA 160XEN ELECTRIC SCISSOR LIFT

The HANGCHA 160XEN is a fully electric scissor lift designed for safe and efficient elevated work in indoor applications. It offers a 15.7 m working height, 230 kg platform capacity, compact maneuverability, and reliable electric operation for maintenance, installation, and warehouse access tasks.

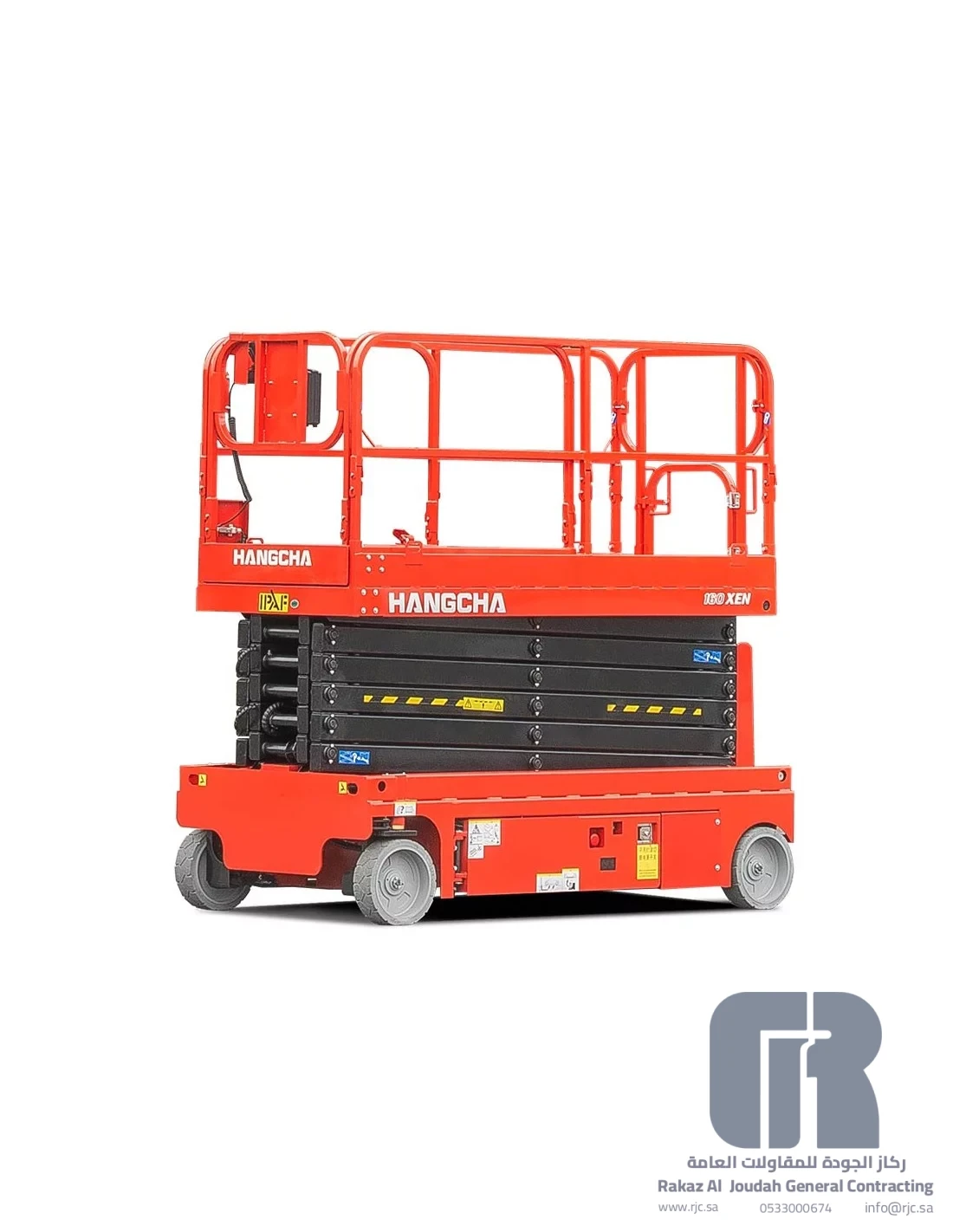

HANGCHA 160XEN Electric Scissor Lift

Description

About HANGCHA and the 160XEN Electric Scissor Lift

HANGCHA is a well-known manufacturer of material handling and aerial access equipment, offering a broad range of solutions for warehouse, industrial, and elevated work applications. The company is recognized for producing electric access platforms designed to combine operational efficiency, practical safety features, and suitability for modern working environments.

The HANGCHA 160XEN is a self-propelled electric scissor lift developed for safe and efficient elevated access, especially in indoor applications. This model is designed to help operators work at height with stable vertical lifting performance, compact maneuverability, and clean electric operation that is well suited to facilities where low noise and zero direct emissions are important.

The 160XEN is commonly used for warehouse access, building maintenance, MEP installation, lighting works, HVAC services, fit-out projects, factory maintenance, and other elevated access tasks that require a practical and reliable scissor lift. Its self-propelled design helps improve productivity by allowing operators to reposition the machine efficiently within the work area.

Based on the attached datasheet, the HANGCHA 160XEN offers a 15.7 m working height, 13.7 m platform height, and 230 kg platform capacity, making it a suitable option for professional users who need dependable electric access equipment for daily indoor elevated work.

Technical specifications

Model

160XEN

Equipment Type

Self-propelled Electric Scissor Lift

Drive Type

AC hydraulic drive

Maximum Load Capacity

230 kg

Maximum Load Capacity of Extended Platform

113 kg

Maximum Number of Workers

Indoor 2 / Outdoor 0

Working Height

15.7 m

Platform Height

13.7 m

Overall Length

2.84 m

Overall Width

1.4 m

Overall Height (Rails Up)

2.62 m

Overall Height (Rails Down)

2.05 m

Platform Size

2.64 x 1.14 m

Extension Deck Length

0.9 m

Wheelbase

2.22 m

Ground Clearance (Stowed/Raised)

100 / 20 mm

Turning Radius (Inside)

0 m

Turning Radius (Outside)

2.7 m

Drive Speed

0 to 3 km/h

Lift Time

65 ± 5 s

Lowering Time

68 ± 7 s

Lifting Speed (Unladen)

0.17 to 0.2 m/s

Descending Speed (Unladen)

0.16 to 0.2 m/s

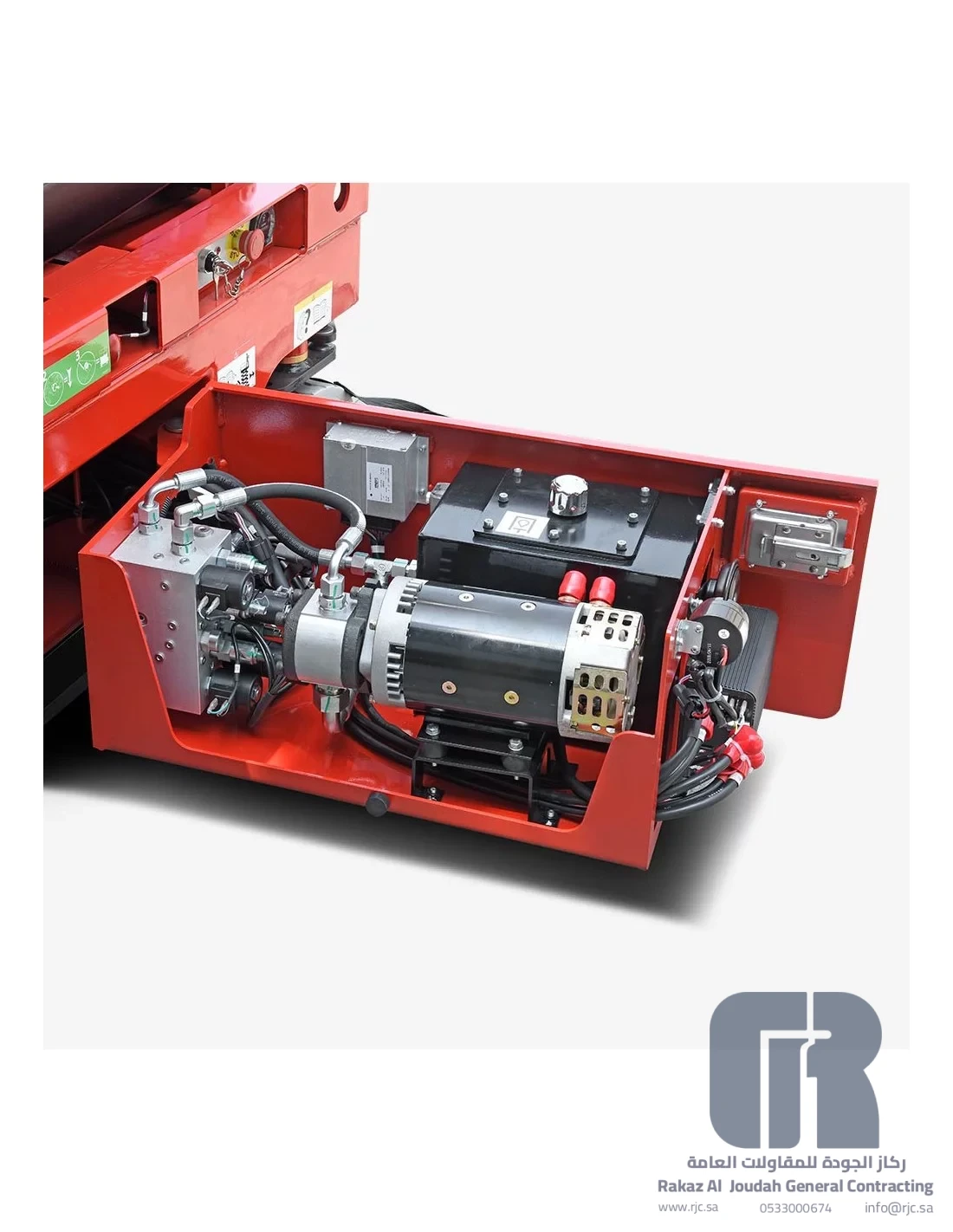

Drive Motor Model

JXQD-3.5-NG

Motor Rated Power

3.5 kW

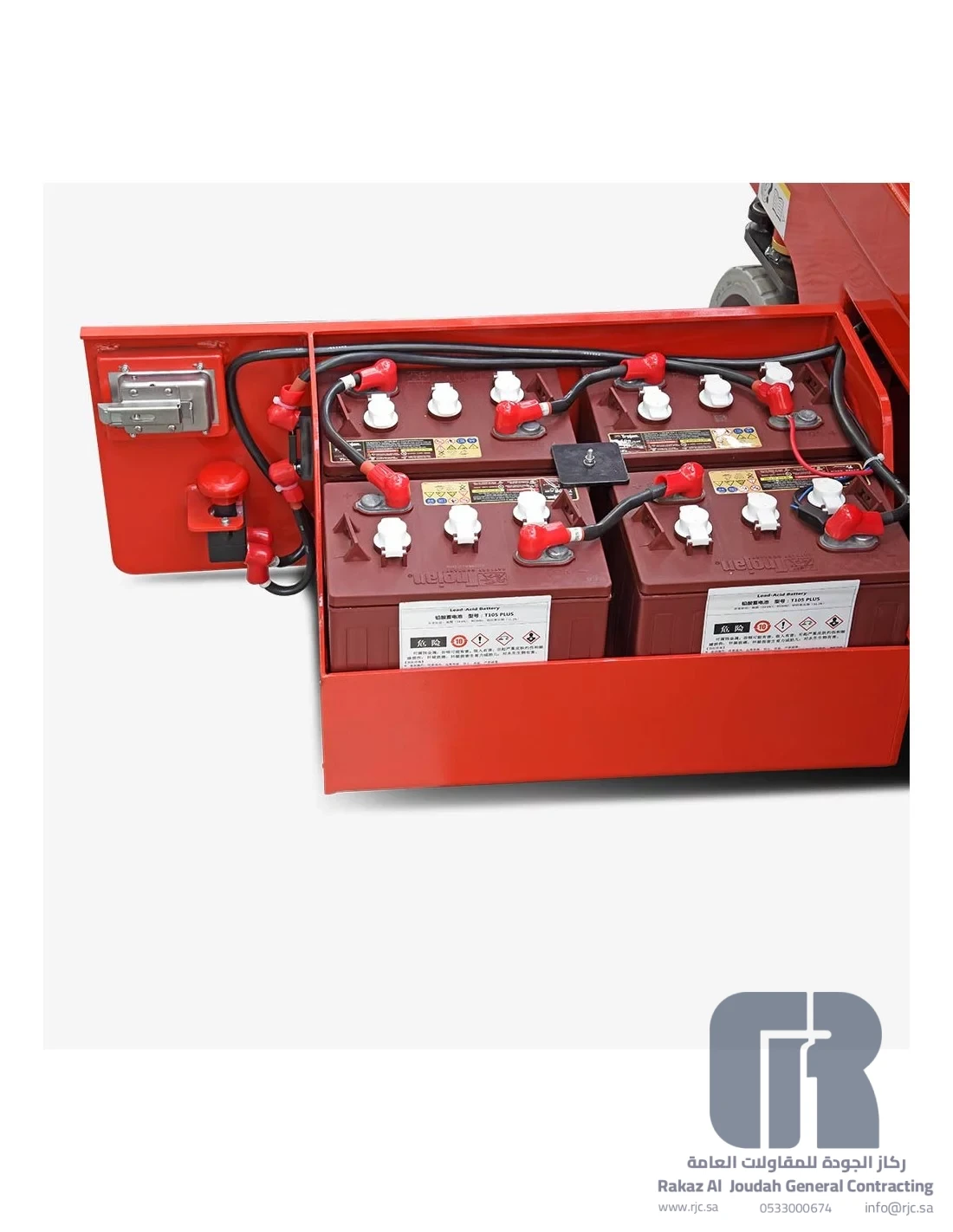

Battery

24V / 200Ah standard lead-acid ; optional 25.6V / 230Ah lithium

Charger

24V / 36A

Maximum Slope Rating

25%

Maximum Allowable Inclination

1.5° / 3°

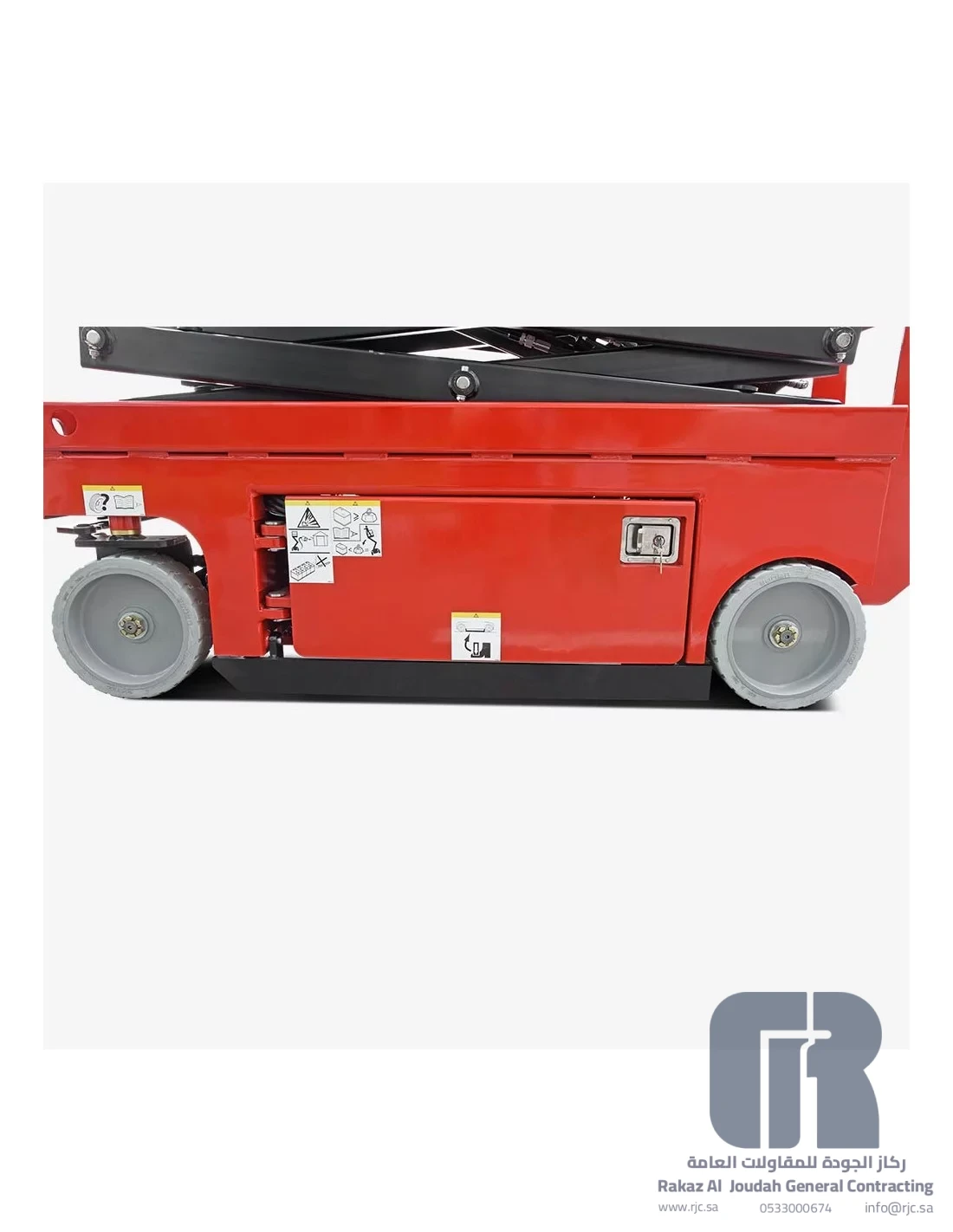

Tire Size

381 x 127 mm

Weight

3240 kg
