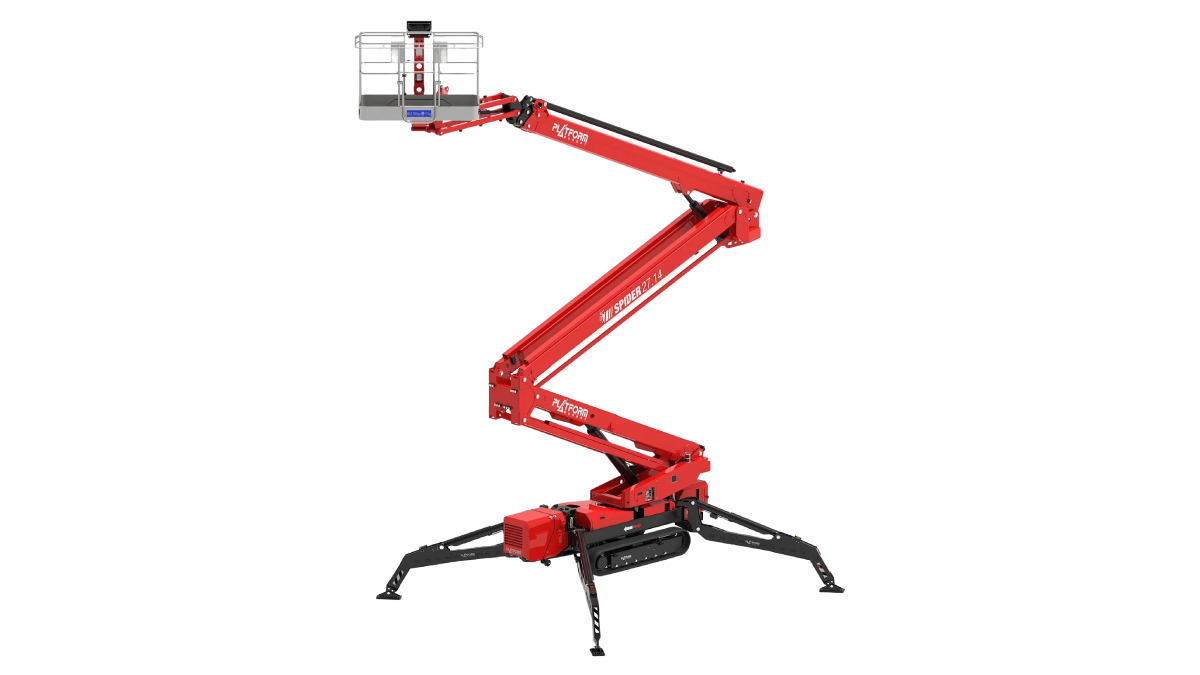

What Is a Spider Lift?

A spider lift, also called a compact crawler boom lift, is a mobile elevating work platform designed to position workers, their tools and permitted materials at elevated work locations.

Many spider lifts use tracks for movement and deployable outriggers for stabilization. Their compact transport dimensions can make them useful at locations where conventional boom lifts cannot enter.

Common applications include building maintenance, façade inspections, glazing work, atrium access, tree care and installations inside buildings with suitable access and floor conditions.

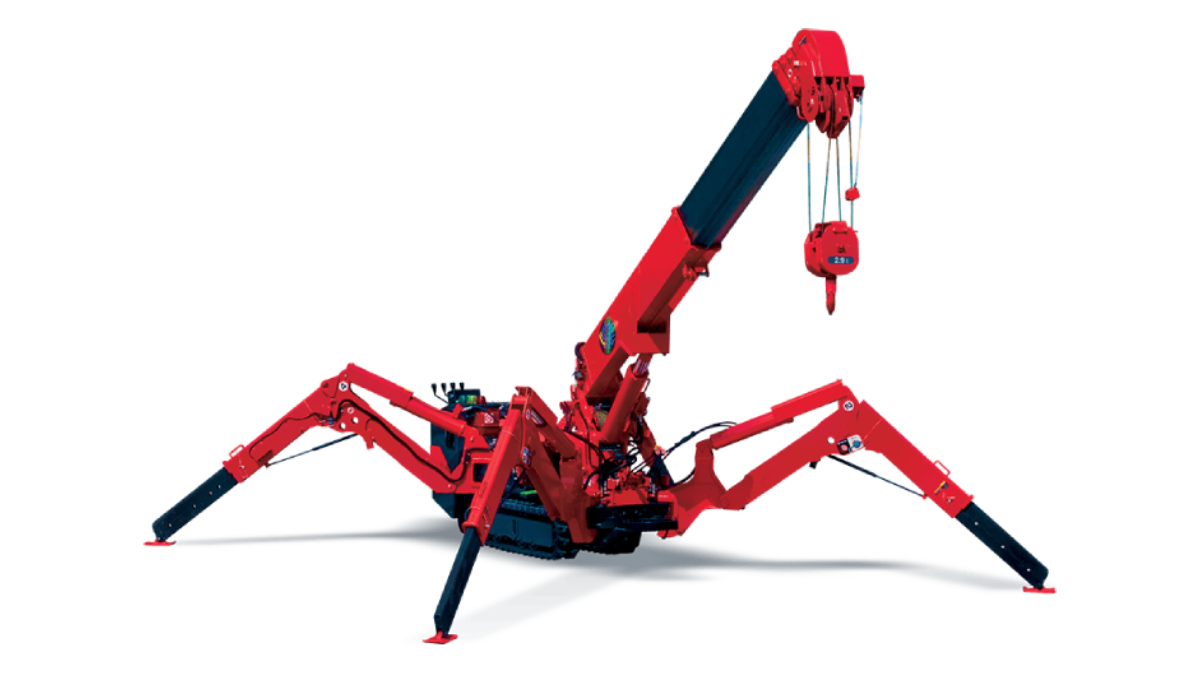

What Is a Spider Crane?

A spider crane, also known as a mini crawler crane, is a compact lifting machine designed to handle suspended loads.

Spider cranes typically use a telescopic boom, lifting hook or approved attachment, hoist system and outriggers to perform controlled lifting operations within the manufacturer's load chart.

These cranes may be used for glass installation, machinery positioning, HVAC equipment placement, steel components and other lifting tasks in confined construction or industrial areas.

Spider Lift vs. Spider Crane: Key Differences

Why Do Spider Lifts and Spider Cranes Look Similar?

Both equipment categories are developed for applications where size and access can be important constraints. Depending on the model, they may share several design features.

• Compact transport dimensions for narrow access routes.
• Stabilizing outriggers that deploy during operation.
• Tracked undercarriages on many models.
• Telescopic or articulated booms, depending on machine design.
• Potential suitability for some indoor and restricted-access locations.

Their similar appearance does not make their operating functions interchangeable. A spider lift must be selected for personnel access, while a spider crane must be evaluated for its intended material lifting operation.

When Should You Choose a Spider Lift?

A spider lift is generally the appropriate equipment category when workers must reach elevated positions to perform inspections, installations or maintenance.

Before selecting a model, verify working height, horizontal outreach, platform capacity, transport width, machine weight, outrigger loads and floor bearing capacity.

When Should You Choose a Spider Crane?

A spider crane is generally the appropriate equipment category when materials or heavy components must be lifted and accurately positioned in a restricted area.

Before choosing a spider crane, verify the load weight, lifting radius, lifting height, outrigger configuration, lifting attachment and approved load chart.

Practical Example: Glass Façade Installation

Consider a project involving the installation of large glass panels on a building façade. Two separate tasks may be required: positioning the glass and providing safe access for the installation team.

Both machines may be used on the same project when the lifting plan and site conditions require them. Their movements must be coordinated, with appropriate exclusion zones and a safe system of work.

Spider Lift vs. Spider Crane: Equipment Selection Checklist

Important Safety Requirements for Spider Equipment

Compact dimensions do not eliminate lifting and stability risks. Safe use requires equipment-specific planning and compliance with the manufacturer's operating instructions.

• Verify equipment suitability and ground bearing capacity.
• Check the required outrigger deployment area and imposed loads.
• Use trained, competent and authorized operators.
• Follow the platform rating or crane load chart as applicable.
• Observe overhead clearance and site-specific restrictions.
• Establish exclusion zones and prevent unauthorized access.
• Follow appropriate inspection and emergency procedures.

For spider lifts, account for personnel fall protection and rescue arrangements as required by the manufacturer and the site. For spider cranes, use approved rigging, lifting accessories and lifting procedures.

Spider Lift and Spider Crane Rental in Saudi Arabia

Ramz Rikaz Al Joudah Trading Est. handles equipment rental inquiries for construction, industrial and maintenance applications in Saudi Arabia.

If your project requires compact access or lifting equipment, provide the working height, lifting requirements, access dimensions, ground conditions, site location and rental period.

Our team can review suitable equipment options. Availability, model specifications and the scope of the rental service are confirmed for each inquiry.

Conclusion: Spider Lift or Spider Crane?

Although both machines can provide solutions for restricted-access sites, the correct choice depends on the task, required capacity, access restrictions and actual site conditions.
