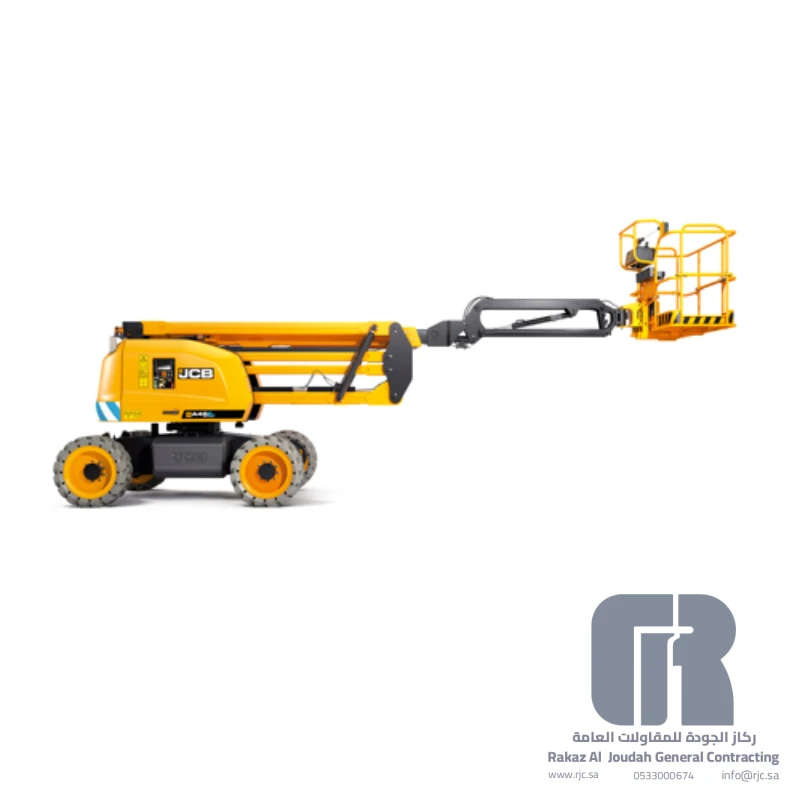

JCB A45E Electric Articulated Boom Lift

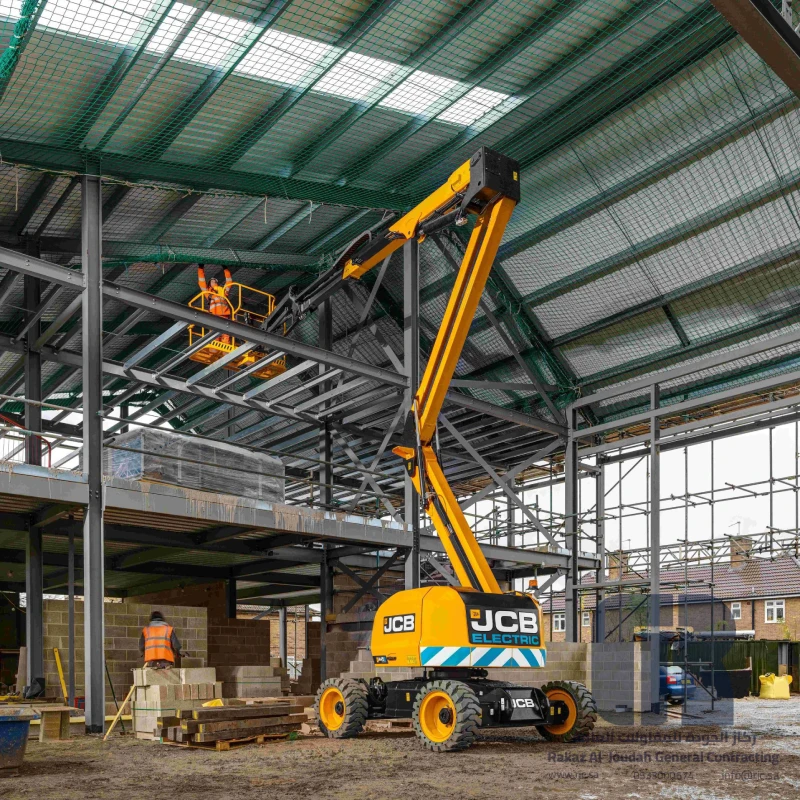

The JCB A45E is an all-electric articulated boom designed for productive work indoors and outdoors. It delivers zero emissions, low noise, and confident performance with a 300 kg platform capacity and smooth proportional control.
Highlights
- Max platform height: 13.84 m
- Horizontal reach: 7.47 m · Up-and-over: 7.48 m
- Platform capacity: 300 kg · Platform rotation: 160°
- Turret rotation: 355° · Wind rating: 12.5 m/s
- Drive: 4WD · Max speed (stowed/raised): 7.0 / 0.87 km/h
- Gradeability: 40%
Dimensions (stowed)
- Length: 7.04 m
- Width: 2.26 m
- Height: 2.23 m
- Wheelbase: 2.03 m
- Tail swing: 0.12 m
- Ground clearance: 0.31 m
- Operating weight: 7,750 kg
Platform
- Platform size: 0.84 m (L) × 1.84 m (W)
- Platform height (entry): 1.24 m
- Entry type: Drop bar · Entries: 3
- Occupancy: 2 persons
- Electronic crush protection: Standard
Power & Electrics
- System voltage: 48 V
- Batteries: VISION EVL16-400A-AM, 400 Ah
- Tilt sensor setting: 5°
Driveline & Steering
- Drive: 4WD
- Steer type: 2WS
- Turning radius (inside/outside): 2.65 m / 4.67 m
- Max circle (folded): 5.96 m
Tyres
- Type: Foam-filled, non-marking
- Size: 33×12D610
Monitoring, Safety & Build
- On-screen diagnostics · JCB LiveLink (Std)
- Electronic crush protection (Std) · Slew lock · Emergency override
- External hose and harness routing
- Regenerative motors · Function speed control · Oscillating steering axle
- Puncture-proof tyres
All specifications are for the A45E model and may change without notice. Performance can vary with conditions and configuration.
