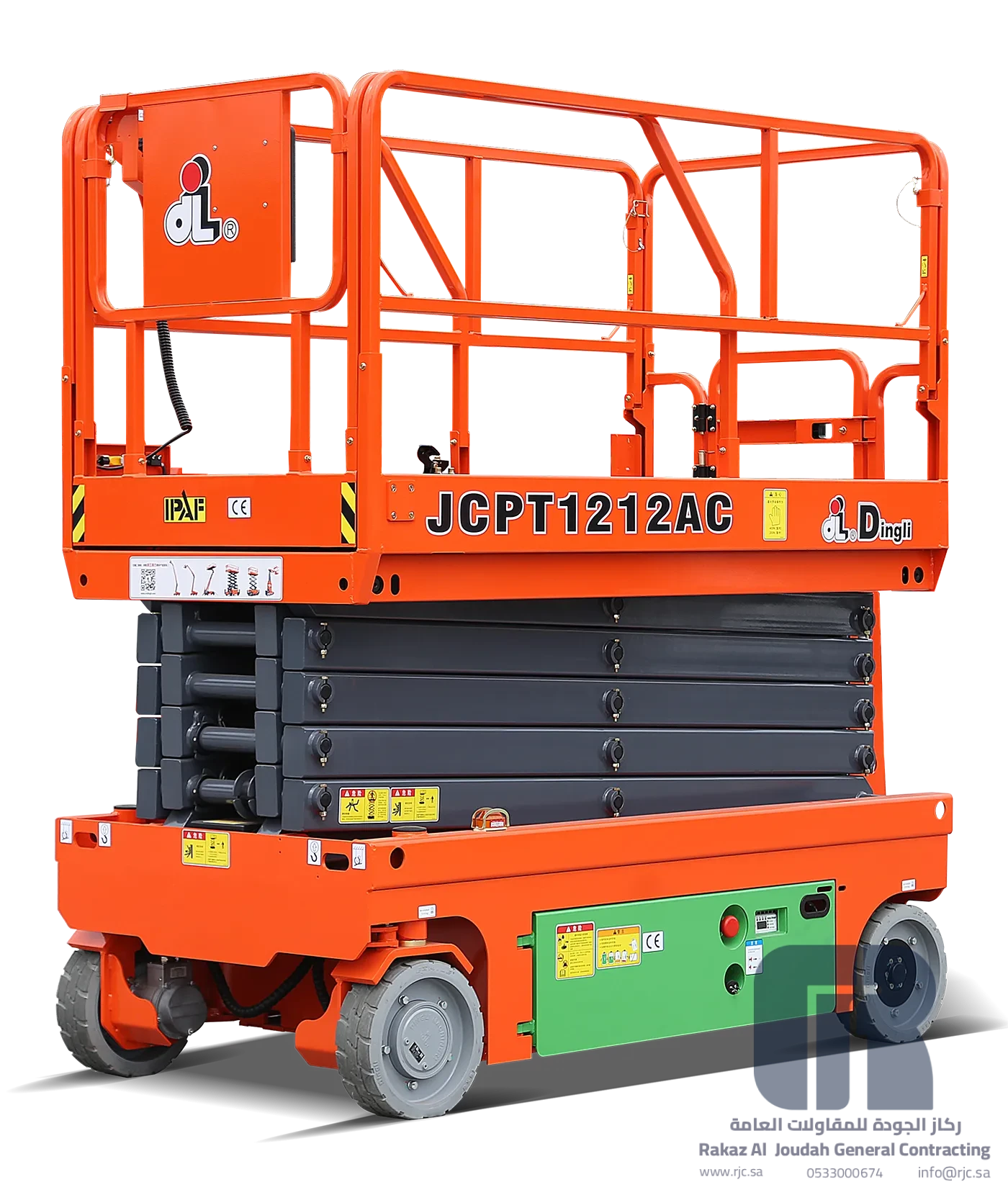

DINGLI JCPT1212AC SCISSOR LIFTS

Dingli JCPT1212AC electric scissor lift with a maximum working height of 12.00m, platform height of 10.00m, and a safe working load of 320kg. It offers a 0.90m one-way platform extension and is drivable at full height.

DINGLI JCPT1212AC Scissor Lifts

Description

Manufactured by ZHEJIANG DINGLI MACHINERY CO., LTD., the Dingli JCPT1212AC is an electric scissor lift designed for reliable indoor and outdoor access work. It combines a robust platform with user-friendly controls, making it suitable for a wide range of maintenance, installation, and construction tasks.

Key features include proportional joystick controls for precise positioning, self-locking gates for operator safety, and a one-way platform extension deck that increases reach. The lift is drivable at full height, enhancing productivity on site. Non-marking tyres allow use on sensitive floors, while two-wheel drive and steering provide maneuverability.

Safety systems such as automatic braking, emergency descent, tilt and motion alarms, and a platform load sense system ensure secure operation. Additional conveniences like onboard fault diagnostics, a flashing LED beacon, and foldable guard rails support efficient workflow. The JCPT1212AC is ideal for applications in warehousing, facilities maintenance, and construction.

Technical specifications

Manufacturer

ZHEJIANG DINGLI MACHINERY CO., LTD.

Country of Origin

China

Max. Working Height

12.00m

Max. Platform Height

10.00m

Overall Length

2.48m

Overall Width

1.15m

Overall Height(Rails Up)

2.49m

Overall Height(Rails Down)

1.96m

Platform Size(Length×Width)

2.27m×1.12m

Platform Extension Size

0.90m

Ground Clearance(Stowed/Raised)

0.10m/0.019m

Wheelbase

1.87m

Turning Radius(Inside/Outside)

0m/2.20m

Tyres

φ381×127mm

Travel Speed(Stowed)

5.0km/h

S.W.L On Extension

113kg

Max. Occupants (Indoor/Outdoor)

2/1

Gradeability

25%

Travel Speed(Raised)

0.8km/h

Max. Working Slope

X-1.5°/Y-3°

Up/Down Speed

54/45sec

Overall Weight

3060kg

Hydraulic Tank

20L

Lead-acid Battery

24V/200Ah

Lithium Battery

24V/220Ah

Charger

24V/30A

Driving Motor

2×15VAC/0.87kW

Lifting Motor

16VAC/3.5kW
