Manufactured by Dingli, the 0807AC is a compact electric scissor lift designed for efficient indoor and outdoor work at height. Its electric drive ensures quiet, emission-free operation, making it suitable for sensitive environments. The lift features a platform extension for added reach and non-marking tyres that protect finished floors. Typical applications include maintenance, installation, and construction tasks in warehouses, retail spaces, and commercial buildings.

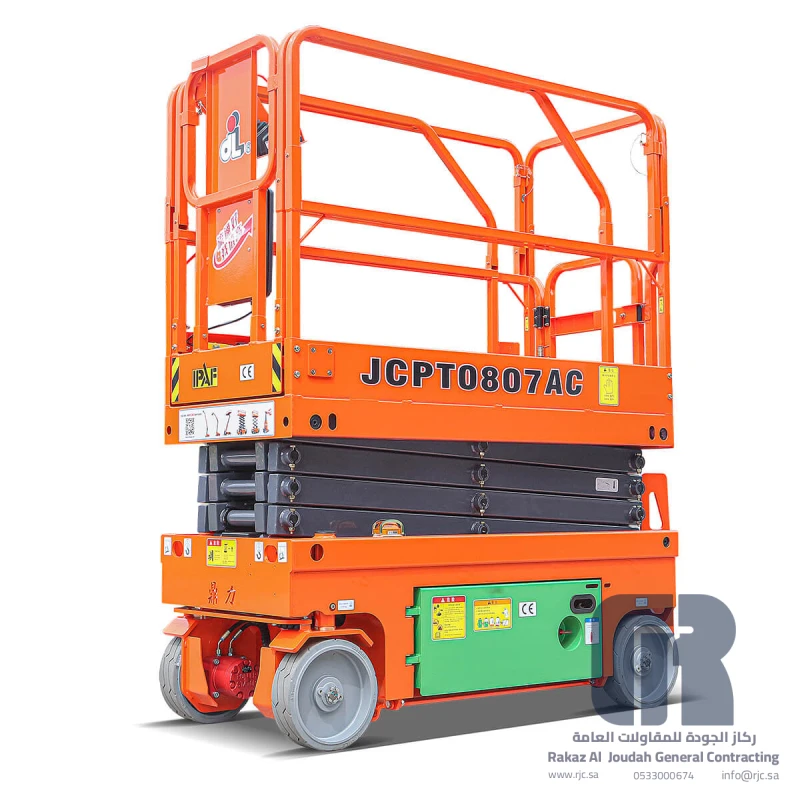

RENTAL DINGLI 0807AC ELECTRIC SCISSOR LIFT
Electric scissor lift with 7.8 m working height, 5.8 m platform height, 230 kg platform capacity, and non-marking tyres.
Equipment gallery
Description
Technical specifications
Platform Capacity
230 kg
Working Height
7.8 m
Platform Height
5.8 m
Extension Deck Capacity
113 kg
Platform Dimensions
1.64 m × 0.76 m
Overall Length
1.86 m
Overall Width
0.76 m
Overall Height (Guardrails Up)
2.15 m
Overall Height (Guardrails Down)
1.75 m
Ground Clearance (Stowed)
60 mm
Ground Clearance (Elevated)
19 mm
Turning Radius (Inside/Outside)
0 / 1.64 m
Tyres (Non-marking)
305 × 115 mm
Operating Weight
"1
Travel Speed (Stowed)
4.0 km/h
Travel Speed (Elevated)
0.8 km/h
Gradeability
25%
Max Working Slope
"2° front/back
Battery
24V/135Ah
Battery Charger
24V/15A
Platform Extension
0.9 m
